BC_software
Overview
The core of the infrastructure is the BC_software, which enables the parallelizzation across multiple nodes of the basecalling computation. This is achieved through a client-server setup, where the BC_Manager acts as the server and the BC_Processor as the client. The whole infrastructure is built upon the dorado_basecaller_server.

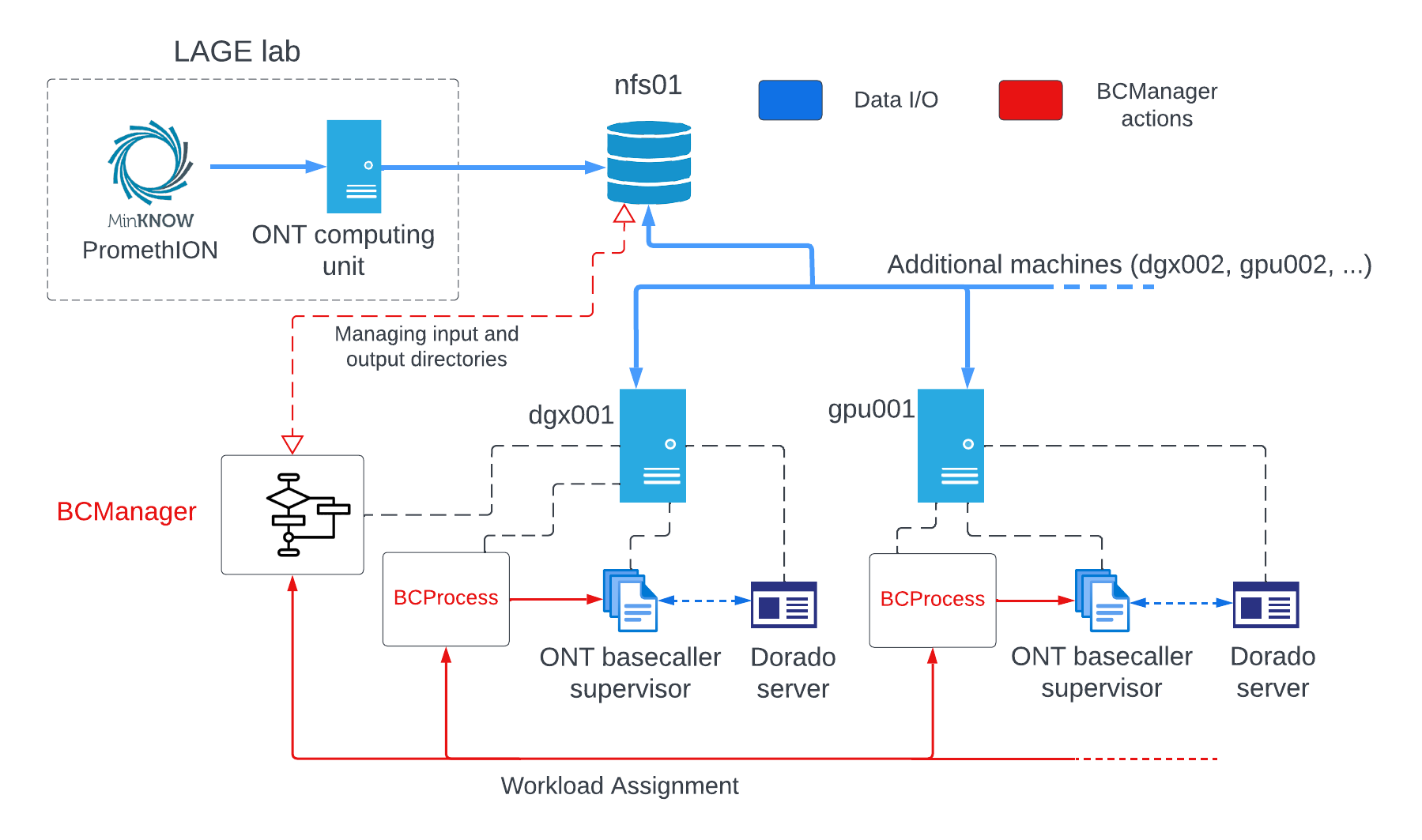

The image below illustrates the fundamental concept underlying this software:
.png)
In order to work correctly, the software use the following packages
How it works:
- All the nodes need to have an instance of the dorado_basecaller_server up and running
- One node will start the BCManager.py
- All the nodes involved will then start the BCProcessor, which will ask to the BCManager for a batch of work. The maximum size of this batch is definied inside the config.json file.
- Every time a batch is assigned, the BCProcessor will launch a supervisor.sh script, that will launch the dorado_basecaller_supervisor
- The dorado suite will perform the actual basecalling
- Each BCProcessor, after the batch is finished, will ask for a new one, until work is available.
- If there are no file to process, the BCProcessor will shutdown
- The BCManager shutdown is managed by the BCController. This 3rd actor will monitor for any activity of the BCManager and, after a certain threshold of inactivity, will kill the Slurm job, ending the basecalling.
